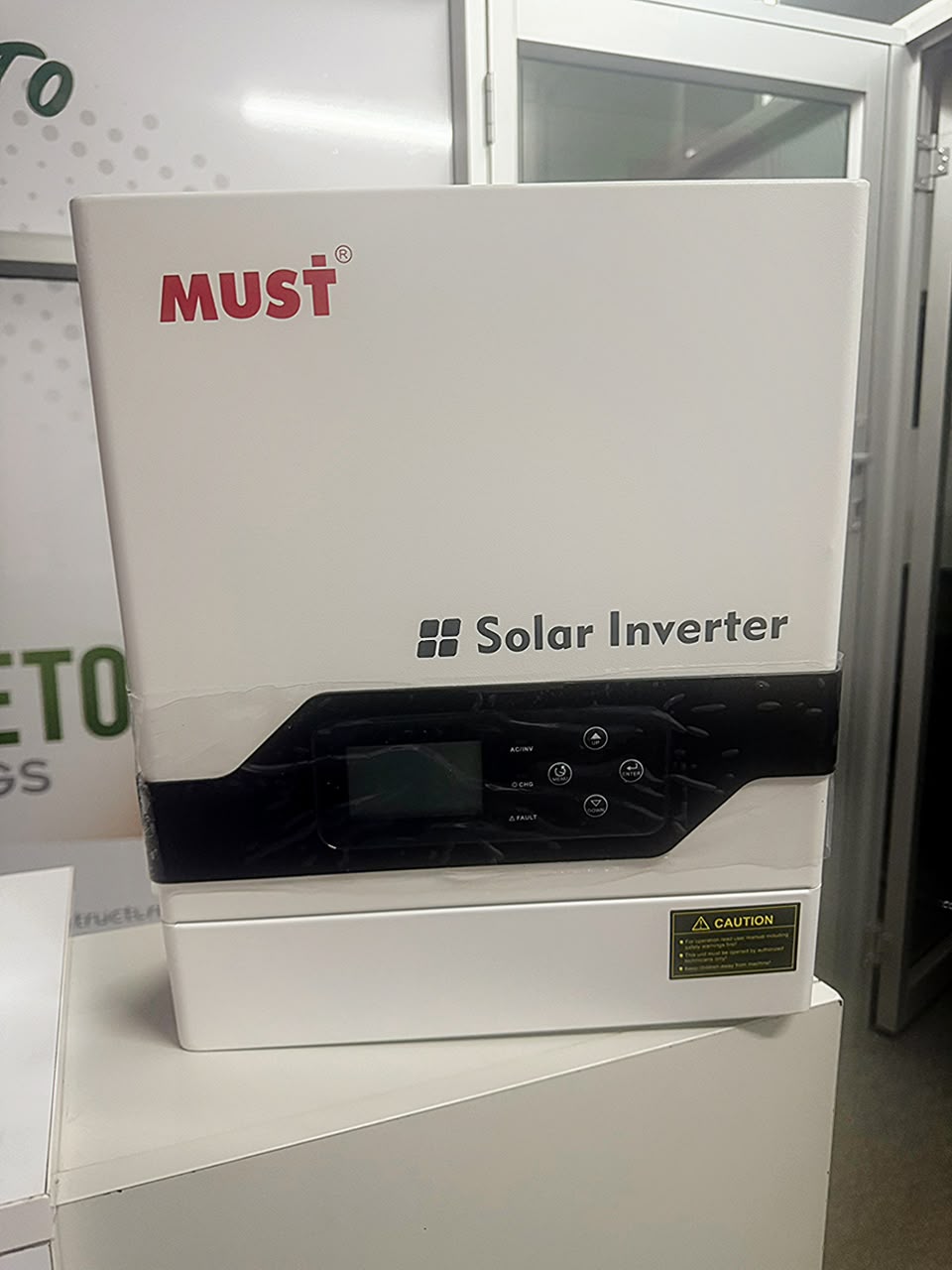

MUST 3.2kVA 24V Hybrid Solar Inverter (PV18-3224 VPM II)

Original price was: $200.00.Current price is: $180.00.

⚡ 3.2kVA / 3200W Output

☀️ 60A MPPT Solar

🔋 24V Battery System

🛡️ 1-Year Warranty

Pure Sine Wave Output: Safe for LED TVs, deep freezers, and sensitive electronics.
Combined 120A Charging: Rapid charging from both utility mains and solar arrays.
Wide PV Input (160Vdc): Simple solar panel string wiring and lower installation cost.

Categories: Solar & Backup Power, Solar Inverters Tags: 24V Inverter, 3.2kVA Inverter, Hybrid Inverter, MPPT Inverter, MUST Inverter Brand: Must

⚡ Pure Sine Wave☀️ MPPT Solar Ready🔋 24V/48V Compatible🛡️ 1-Year Local Warranty

Product Overview

The MUST PV18-3224 VPM II is a multi-function 3.2kVA hybrid inverter and charger. It combines inverter power, a 60A MPPT solar charger, and utility battery charging in one compact unit. It delivers clean 230V pure sine wave power ideal for Zimbabwean homes, farms, and offices.

Technical Specifications

Brand & Model	MUST PV1800 VPM II Series (Model: PV18-3224 VPM II)
Rated Power Output	3200VA / 3200W (Power Factor 1.0)
System DC Voltage	24VDC (Nominal Input Current: 140A)
AC Output Waveform	Pure Sine Wave, 230VAC (50Hz / 60Hz, 14A, 1-Phase)
Solar Controller Type	Built-in MPPT Solar Charge Controller
Rated Solar Charge Current	60A
MPPT Voltage Range	30VDC – 128VDC
Max PV Open Circuit Voltage (Voc)	160VDC
AC Mains Charger Current	24VDC, 60A
Max Combined Charge Current	120A (Solar + Utility Mains)
Operating Temperature Range	-10°C to 50°C
Ingress Protection Rating	IP20 (Class I)

Chengeto Direct Buyer Protection & Services

🏬
Harare Collection: Pick up same-day at our trade counter.

🚚
Countrywide Delivery: Fast transit across Zimbabwe.

🔧
Technical Advice: Sizing and installation guidance available.

Solar Installation & Compatibility Guide

Ensure optimal performance and protect your warranty by following these engineering recommendations:

🔋 Battery Pairing

Use matched 24V or 48V battery banks. Lithium (LiFePO4) or deep cycle gel batteries are recommended.

☀️ Solar Array Matching

Verify panel string open-circuit voltage (Voc) stays safely within controller operating limits.

⚡ Surge Protection

Install dedicated DC breakers, AC bypass switches, and lightning surge arrestors on all live inputs.
